Convex Polytope

Definition (Half-space)

A half-space in Rk\mathbb{R}^{k} is a set of the form H(u,β)={x∈Rk:uTx+β≥0}H(\mathbf{u},\beta)=\{ \mathbf{x}\in\mathbb{R}^{k}:\mathbf{u}^{T}\mathbf{x}+\beta\ge 0 \}where u∈Rk (u≠0)\mathbf{u}\in\mathbb{R}^{k} \ (\mathbf{u}\not=0) and β∈R\beta\in\mathbb{R}.

Intuition

Take some space and cut it in two

Definition (Hyperplane)

A hyperplane Λ(u,β)\Lambda(\mathbf{u},\beta) is the boundary of the H(u,β)H(\mathbf{u},\beta) i.e. Λ(u,β)={x:uTx+β=0}\Lambda(\mathbf{u},\beta)=\{ \mathbf{x}:\mathbf{u}^{T}\mathbf{x}+\beta=0 \}

Intuition

The this is the divider for the half-space

Definition (Convex polytope)

A set R⊂RkR\subset\mathbb{R}^{k} is a convex polytope if it can be written as a finite intersection of s i.e. R=⋂i=1LH(ui,βi)R=\bigcap_{i=1}^{L}H(\mathbf{u}_{i},\beta_{i})for some u1,…,uL∈Rk\mathbf{u}_{1},\dots,\mathbf{u}_{L}\in\mathbb{R}^{k} and β1,…,βL∈R\beta_{1},\dots,\beta_{L}\in\mathbb{R}.

Intuition

Everything within the convex polytope and on the boundary is inside the space. Hence this convex polytope forms an additive group.

Proposition

A convex polytope is a convex subset of Rk\mathbb{R}^{k}.

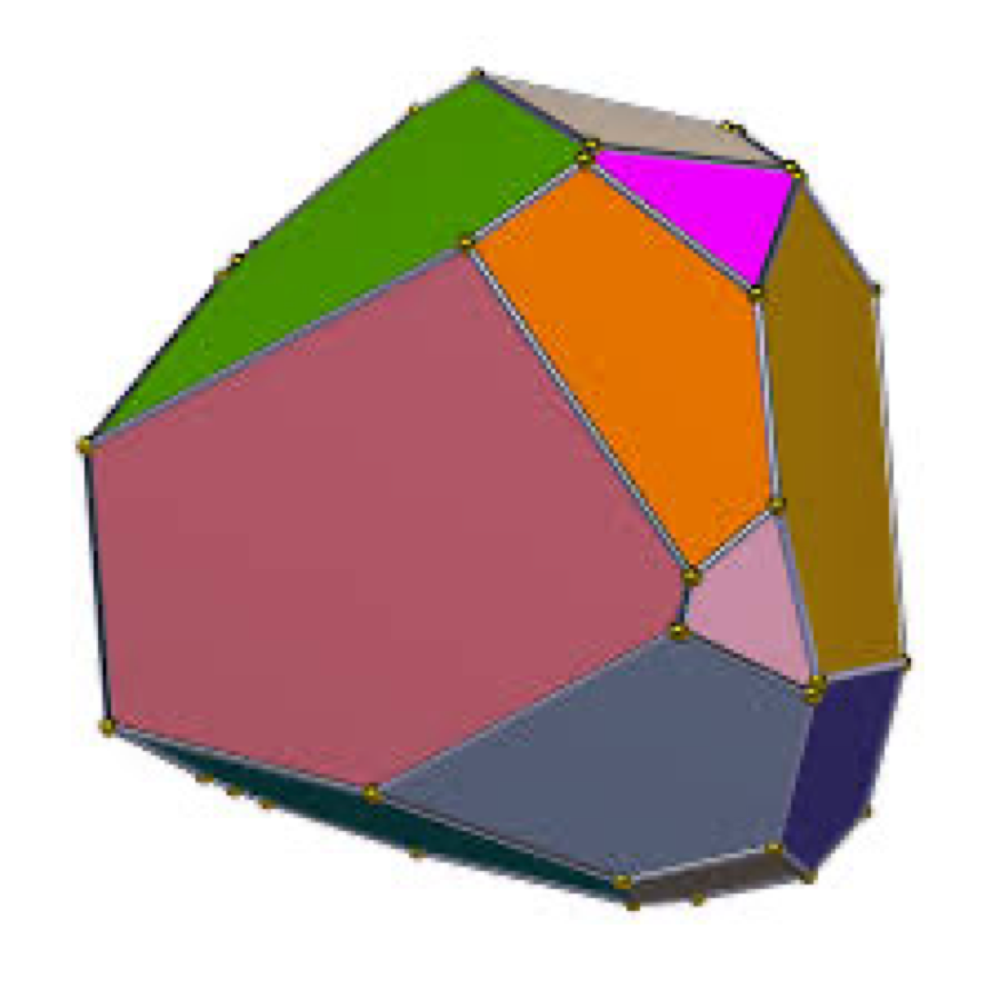

Pasted image 20240402145149.png
